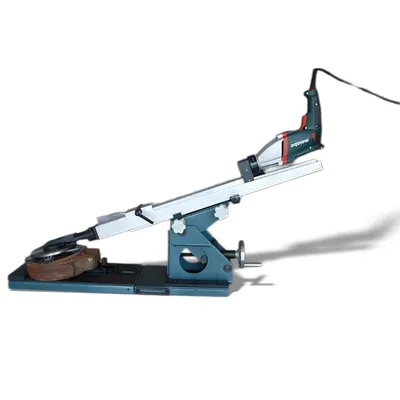

MZ Portable Valve Grinding Machine for grinding gate valve is a new generation of products that is adeveloped to adapt to on-site maintenance gate valve. It has the advantages as below: the reduction of labor intensity, improving labor efficiency, replacing imported products, educing the maintenance cost. It is widely used in petroleum, chemical industry, steel mills, power plants and so on.
| Technical Parameter | |
|---|---|
| Grinding Range (mm) | DN80-200mm(3″-8″) |
| Voltage(V) | 220 |
| Power(W) | 1300 |
| Frequency（HZ） | 50 |
| Max Grinding Depth (mm) | 600 |
| Valve sealing face min gap(mm) | 45 |
| Gross Weight(kg) | 31.5 |
| Grinding Machine | |
|---|---|
| Grinding Range（mm） | DN80-200mm(3″-8″) |
| Voltage（V） | 220 |
| Power（W） | 1300 |
| Frequency（HZ） | 50 |
| Max Grinding Depth（mm） | 600 |
| Valve sealing face min gap(mm) | 45 |
| Gross Weight（kg) | 31.5 |
