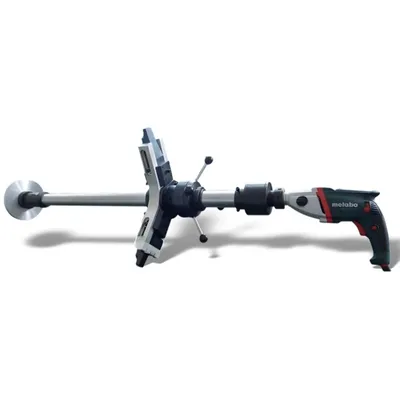

MJ400 DN100-400mm (4-16Inch) Portable Relief Valve Grinding Machine

Contact Us

Portable Grinding Machine for Relief Valve Introduction

MJ-400 Portable Valve Grinding Machine for Relief Valve is a new generation of products that is adeveloped to adapt to on-site maintenance gate valve. It has the advantages as below: the reduction of labor intensity, improving labor efficiency, replacing imported products, educing the maintenance cost. It is widely used in petroleum, chemical industry, steel mills, power plants and so on.



Technical Parameter
grinding diameter Dia118-Dia450mm DN100-400mm( 4″-16″ )
used for valve seat of plane globe valve, valve seat of safety valve .
spindle speed(rpm) 0-900,0-2800
the greatest grinding depth 850 mm
Power supply 220 V/50Hz
motor power 1100W
